A refined criterion for wear particle formation

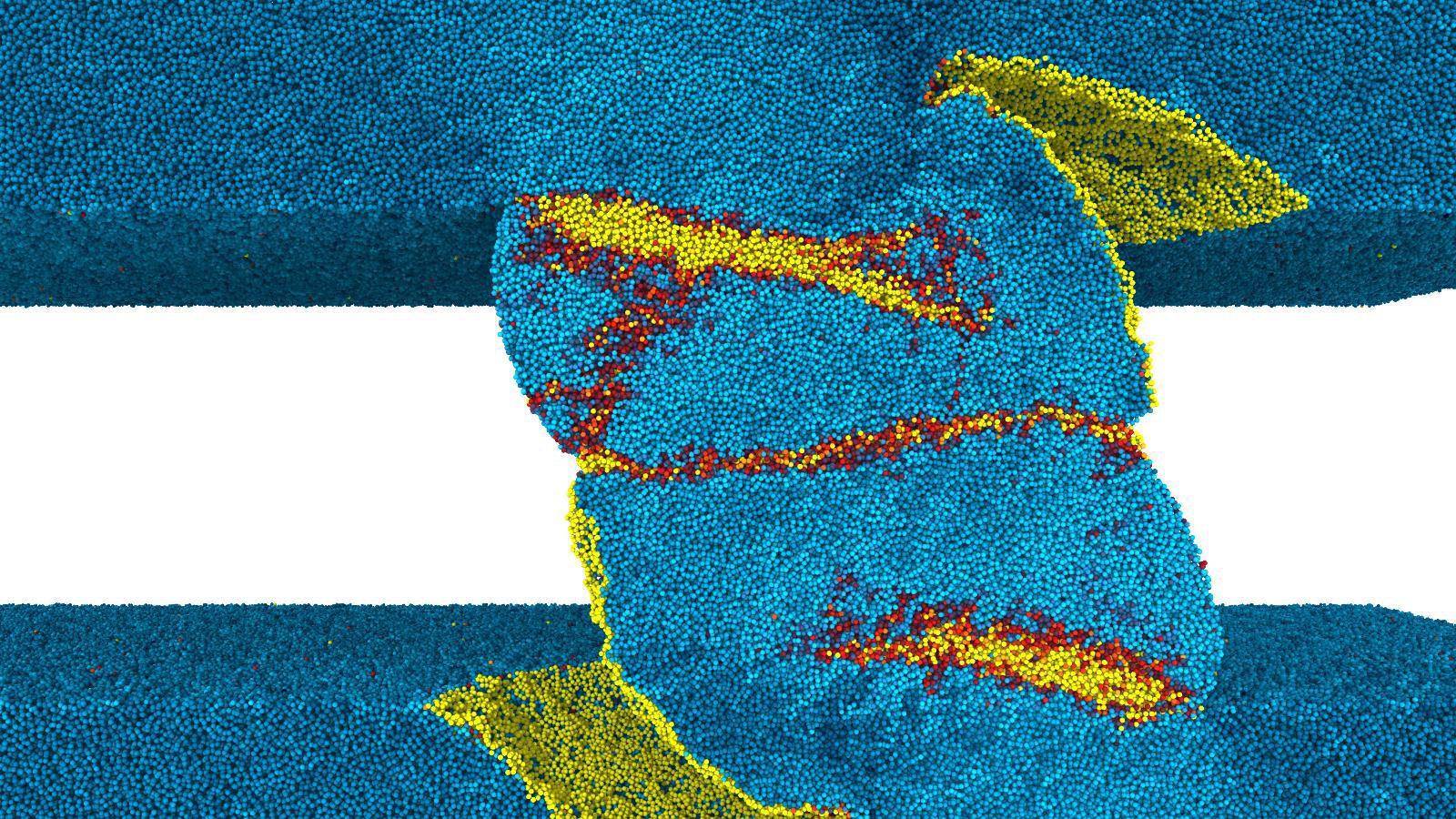

Detachment of a wear particle. © Tobias Brink / EPFL 2019

Detachment of a wear particle. © Tobias Brink / EPFL 2019

Whenever surfaces in contact slide relative to each other, they wear and emit particles. In a study published in Physical Review Materials and selected as an Editor’s Suggestion, researchers from EPFL’s Computional Solid Mechanics Laboratory (LSMS) investigate the influence of the adhesion between the contacting surfaces on the process of wear particle formation.

It has long been known that rubbing surfaces are worn by the formation of debris particles, but the microscopic processes behind this phenomenon are still under discussion. But understanding these processes is crucial in order to derive useful wear laws based on physical insights instead of ad-hoc emprical relations. In a study conducted in the Computional Solid Mechanics Laboratory (LSMS), the researchers use atomistic modeling to describe the debris creation process at the nanoscale when the adhesion between the surfaces is reduced—a case that is in fact expected in most material contacts.

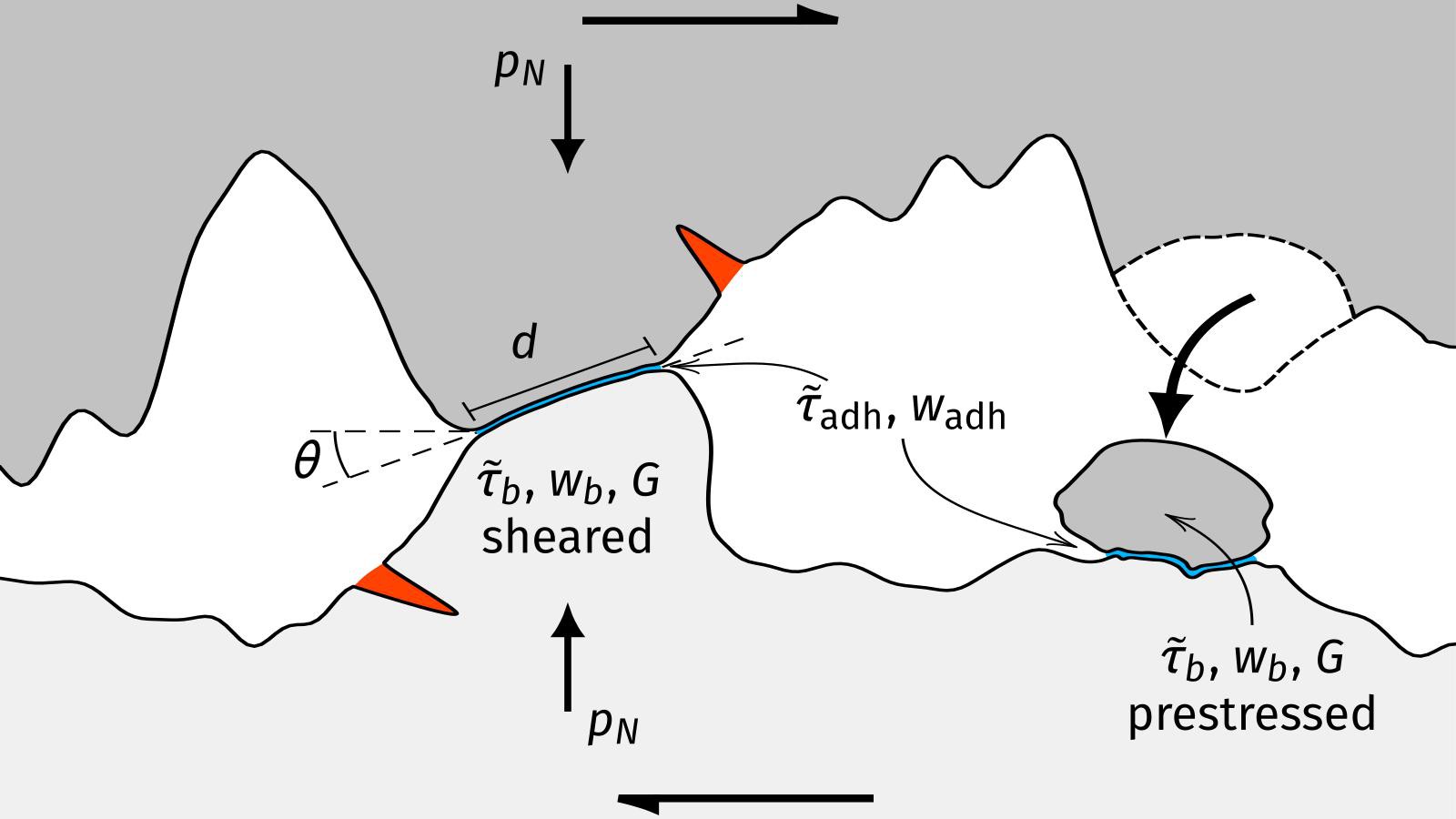

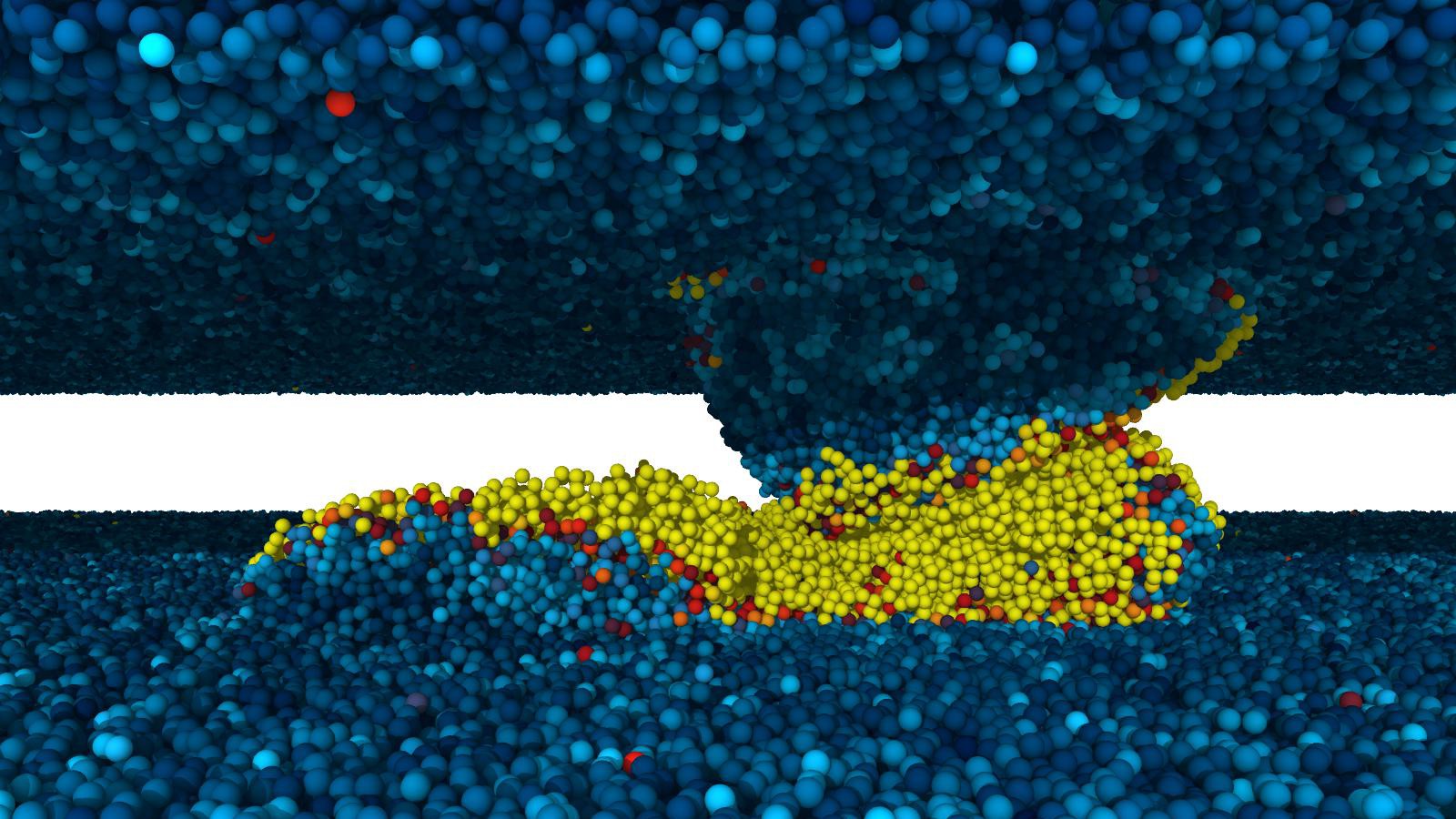

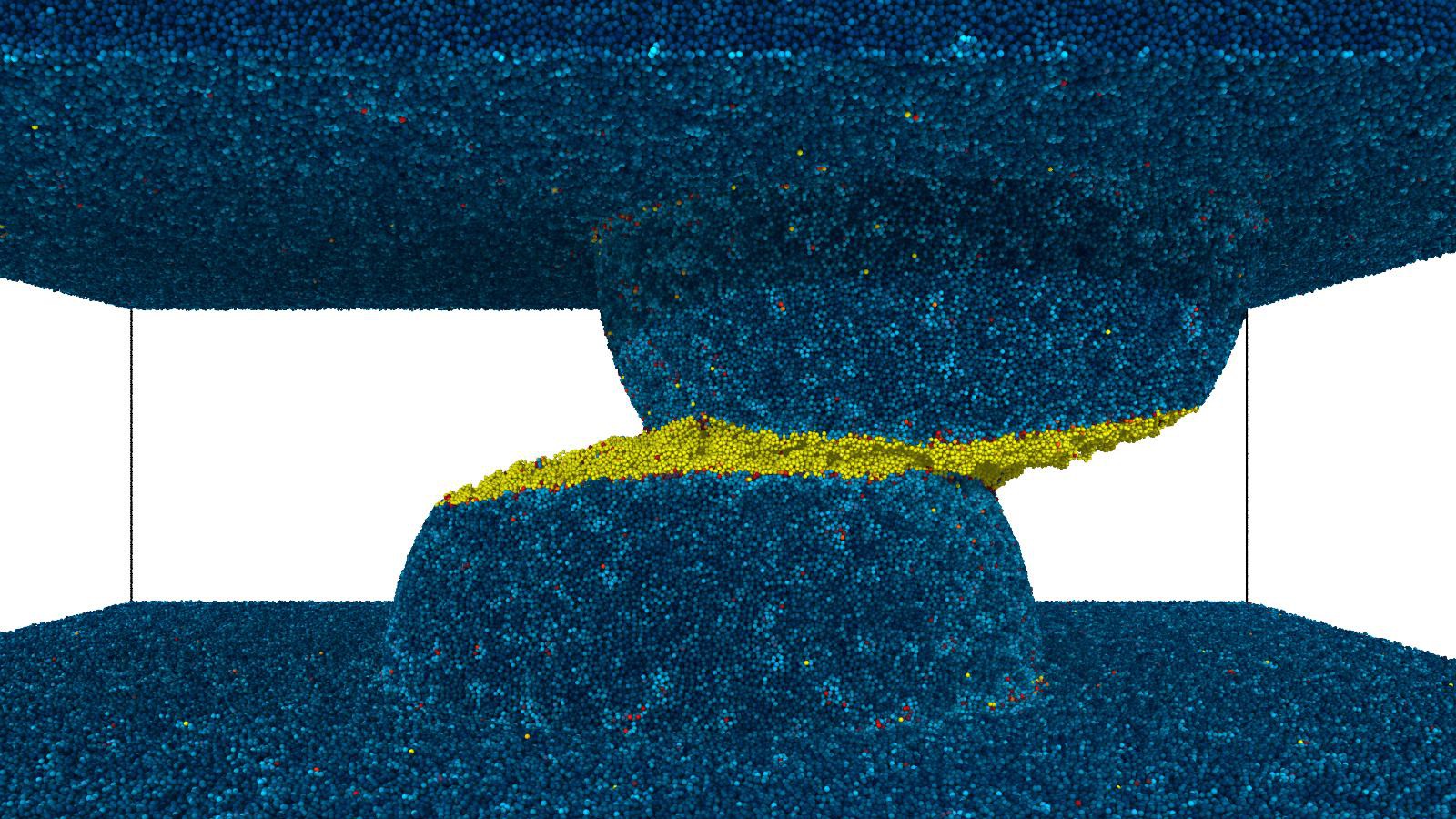

By conducting simulations of a large number of individual surface asperity collisions with varying contact angles and interface properties, they find that the asperities can either deform plastically, form wear particles, or slip along the contact junction surface without significant damage. The work shows at the microscopic level why flatter surfaces are more amenable to slip and low wear and, conversely, wear particles result more easily from high-angle asperity collisions on rougher surfaces. All of this can be described by a predictive, analytical model at the asperity level based on interface properties and roughness parameters.

In the future, the LSMS researchers hope to use these insights to predict wear rates and the emission of particles in various contact scenarios.

Funding

This work was supported by a grant from the Swiss National Supercomputing Centre (CSCS) under project ID s784.

References

T. Brink and J.-F. Molinari, “Adhesive wear mechanisms in the presence of weak interfaces: Insights from an amorphous model system”, Phys. Rev. Mater. 3, 053604 (2019), https://doi.org/10.1103/PhysRevMaterials.3.053604


Author: Tobias Brink
